Description

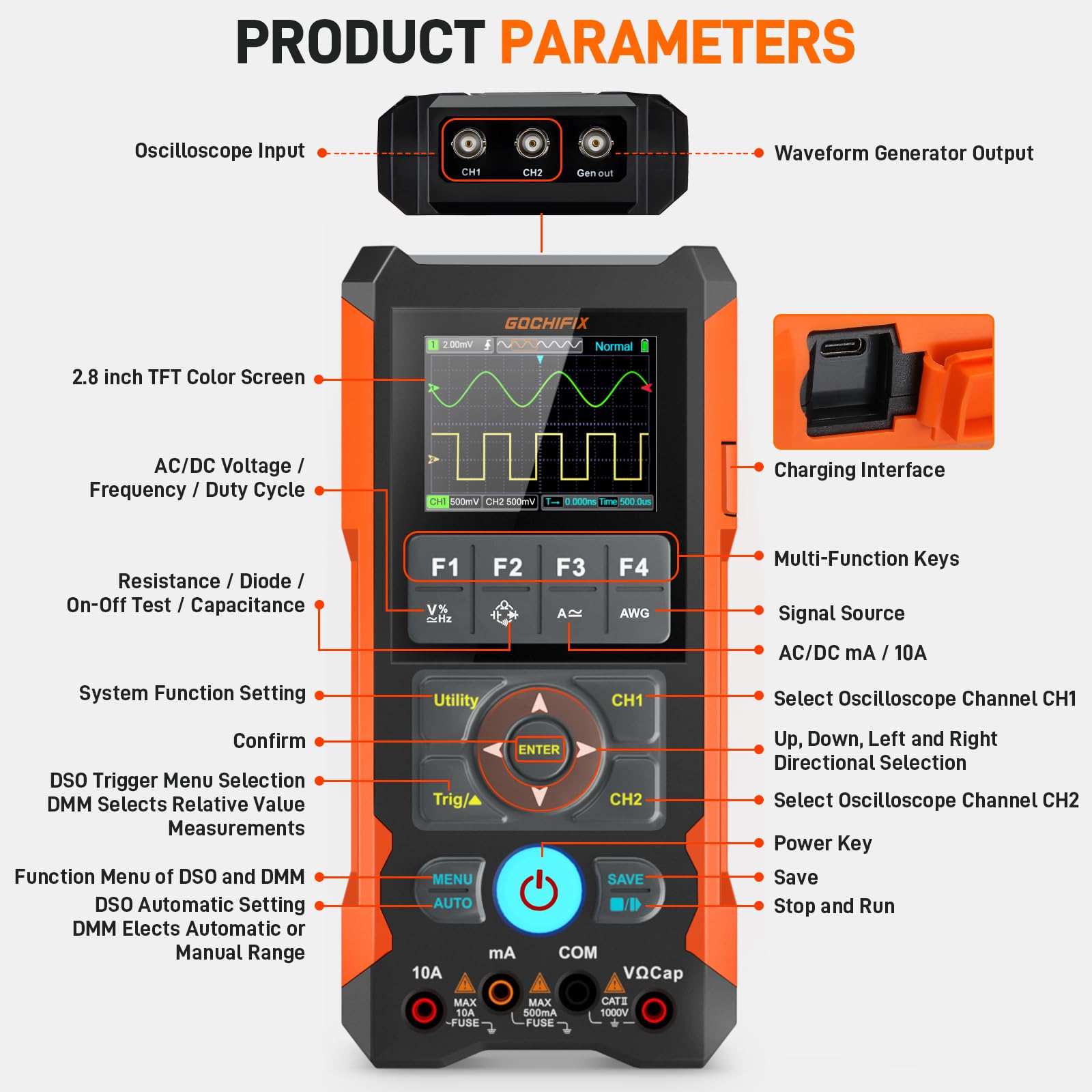

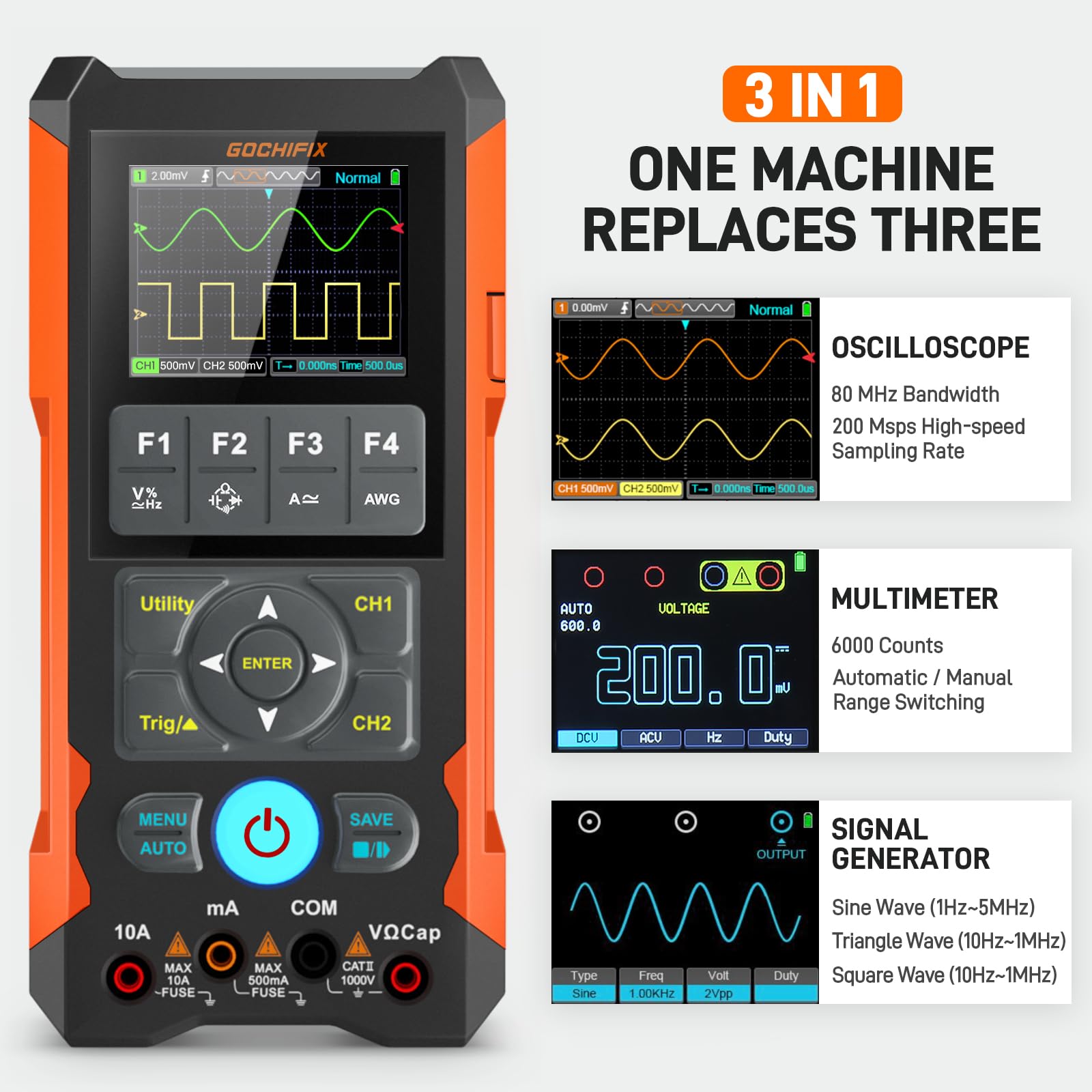

- 3 in 1 : A multi-functional measuring instrument that integrates a 80MHz analog bandwidth oscilloscope, a 6000-code digital multimeter and a signal source.
- 2 Channel : The digital oscilloscope 2 channel can measure and display 2 different signals at the same time, enabling comparison and analysis between channels.
- High-speed Sampling: With 200Msps high-speed sampling, handheld oscilloscope can conduct quantitative analysis of signals within the 80MHz analog bandwidth.
- Waveform Generator : Output 3 signal waveforms: sine wave (1Hz~5MHz), triangle wave (10Hz~1MHz), and square wave (10Hz~1MHz)， which can be used to debug electronic equipment, detect system parameters, verify and analyze signals.
- Large Storage Capacity : Press the "SAVE" button to retain the current data or waveform, capable of storing 2000 sets of data and 200 waveforms.
- Longer Battery Life : Built-in 2000mAh lithium battery, GOCHIFIX oscilloscope 2 channel can be used continuously for about 10 hours after being fully charged.
Handheld Oscilloscope Multimeter GOCHIFIX Waveform Generator 3 in 1 Automotive Oscilloscope 2 Channel 80Mhz Bandwidth 200Msps Sampling Rate Signal Generator Digital Oscilloscope Multimeter
